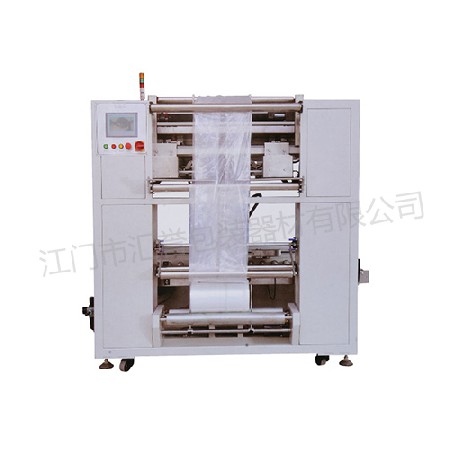

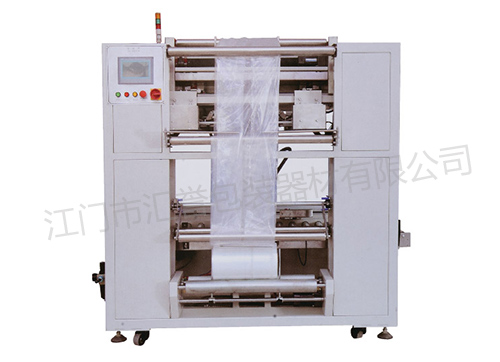

HY-40T automatic paper box inner bagging machine
2020-09-18 1436
Product Features:
The aircraft adopts multi servo control, which is fast, accurate, and stable; Automatically complete cardboard box input, positioning, adhesive film output, bottom sealing, box insertion, film cutting, folding, and cardboard box output. It can be connected to the front automatic unboxing machine and the rear automatic packing machine to achieve unmanned automatic packaging. Suitable for cardboard inner covers of food, solid oils, fats, edible oils, seasonings, biscuits, snack foods, bulk packaged foods, raw materials, beverages, chemicals, hardware, screws, electronics, rubber plastics, plastics and other productsBag.
| Main technical parameters | |
| Model No | HY-40 |
| Applicable Carton | L200-500mm |
| W200-400mm | |
| H W/2≤500mm | |
| Mesa Height | 650mm |
| Packaging efficiency | 10Box/minute |
| Adhesive film size | 460-800mm cartonL W 150 |
| Machine size | L2000*W1500*H800mm |
| voltage power | 380V 50HZ 2.5KW |
| gas press | 5-6kg/cm3 |
-
